STORION-T50/100

50 / 100 kW

34.2 - 387.072 kWh

  • A double inverter capacity PV input for off-grid

  • Modular design

FEATURES

  • MPPT.svg

    1 MPPT

  • .MultipleOptions-164.svg

    Multiple Options

  • PVinput.svg

    100 / 200 kW
    Max. PV Input

  • STSintegrated.svg

    Optional STS Integrated
    Transformer Module

SPECS

System Specifications

Rated Power

50 kW

100 kW

Max. Grid Input Power

100 kW (with STS),
50 kW (without STS)

200 kW (with STS),
100 kW (without STS)

Battery Energy Range

34.2 kWh ~ 387.072 kWh

34.2 kWh ~ 387.072 kWh

Battery Type

LFP (LiFePO₄)

LFP (LiFePO₄)

Application Environment

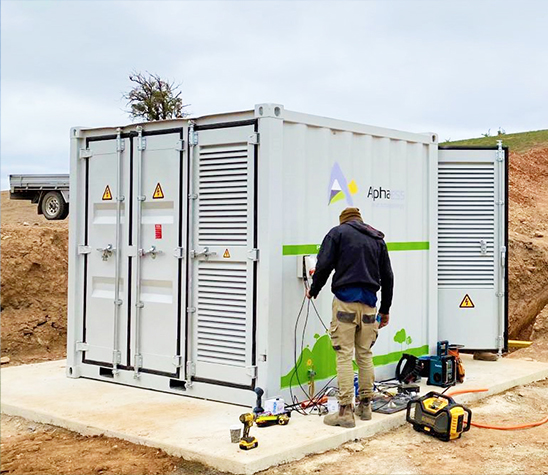

Indoor (Rack) / Outdoor (Container)

Indoor (Rack) / Outdoor (Container)

Warranty

3 Years Product Warranty

3 Years Product Warranty

Battery Specifications

Module Model

Rated Voltage

Nominal Capacity

Max. Charging/Discharging Current

IP Protection

Cycle Life

Operating Temperature Range

  • 38180-S.png

    Module Model

    M38180-S

    Rated Voltage

    38.4 V

    Nominal Capacity

    6.912 kWh

    Max. Charging/Discharging Current

    180 A

    IP Protection

    IP20

    Cycle Life

    80%EOL with ≥ 6000@1C 25℃

    Operating Temperature Range

    -10 °C ~ 50 °C

  • h.png

    Module Model

    M38210-S

    Rated Voltage

    38.4 V

    Nominal Capacity

    8.064 kWh

    Max. Charging/Discharging Current

    105 A

    IP Protection

    IP20

    Cycle Life

    80%EOL with ≥ 6000@0.5C 25℃

    Operating Temperature Range

    -10 °C ~ 50 °C

  • m8112.png

    Module Model

    M48112-S

    Rated Voltage

    51.2 V

    Nominal Capacity

    5.734 kWh

    Max. Charging/Discharging Current

    112 A

    IP Protection

    IP20

    Cycle Life

    80%EOL with ≥ 6000@1C 25℃

    Operating Temperature Range

    -10 °C ~ 50 °C
