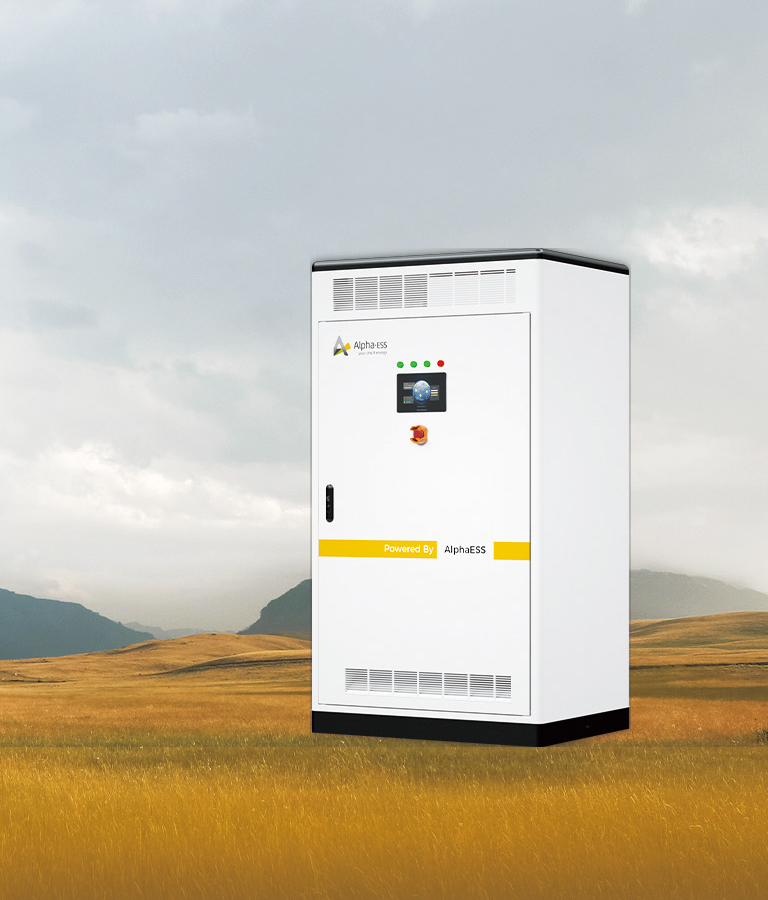

STORION-H30

30 kW

Max. 96.77 kWh

  • This air-cooling outdoor cabinet will soon be available on the market with a 30kW hybrid-coupled system, capable of both on-grid and off-grid operations. Additionally, H30 could be programmed to discharge and meet the energy demand on project basis, designed for small businesses. The most special design for this system is the plug & play battery module installation, which makes the installation process easier.

FEATURES

  • Safe&Reliable.svg

    Safe & Reliable

  • Integration.svg

    High Integration

  • AirCooling.svg

    Advanced Air
    Cooling Technology

  • .MultipleOptions.svg

    Multiple Options
    Charging/Discharging Rate: 0.25p~1p

  • OperationMode.svg

    Multiple Operation Mode
    Automatic On/Off-Grid
    Switching within 30ms

  • Installation.svg

    Easy Battery Installation
    Plug and Play without
    Cable Connection

  • parallelconnection.svg

    High Flexibility
    Support Parallel Connection
    on DC/AC Side

SPECS

System Specifications

Model

STORION-H30

STORION-H30-O

Rated Power

30 kW

30 kW

Max. Input Power

60 kW

60 kW

Protection Level

IP20

IP54

Operating Temperature Range

20°C ~ 30°C

- 40°C ~ 50°C

Dimensions (L x W x H)

1100 x 900 x 2000 mm

1200 x 900 x 2160 mm

Battery Specifications

Module Model

Battery Type

Nominal Capacity

Rated Voltage

Operating Voltage

Max. Charging/Discharging Current

Dimensions (W x D x H)

  • M7790-S-209.png

    Module Model

    M7790-S

    Battery Type

    LiFePO₄

    Nominal Capacity

    6.912 kWh

    Rated Voltage

    76.8 V

    Operating Voltage

    72 V ~ 84.48 V

    Max. Charging/Discharging Current

    90 A

    Dimensions (W x D x H)

    326 x 654 x 250 mm

  • 38210-S-403.png

    Module Model

    M38210-SC

    Battery Type

    LiFePO₄

    Nominal Capacity

    8.064 kWh

    Rated Voltage

    38.4 V

    Operating Voltage

    36 V ~ 43.2 V

    Max. Charging/Discharging Current

    105 A

    Dimensions (W x D x H)

    325 x 658 x 232 mm
