Hybrid Single-Phase Home Battery System
SMILE5
Australia’s Proven VPP-Ready Energy Storage Solution
x
VPP-Ready System
Supports smarter energy participation and future virtual power plant opportunities.
Reliable UPS Backup
Seamless backup power during outages to keep essential loads running.
High System Compatibility
Compatible with a wide range of household solar applications and energy setups.
Proven Classic Design
A trusted all-in-one system with long-term performance in Australian homes.
x
Product Introduction
Nominal Output Power: 5 kW
Max. PV Input Current: 15 A / 15 A
Max. PV Input Power: 7.5 kWp
Capacity Range: 13.3 - 80 kWh / 15.07 - 75.36 kWh
Backup: UPS
Phase: Single Phase
Inverter Type: Hybrid Inverter
x
Compatible Battery Model
x

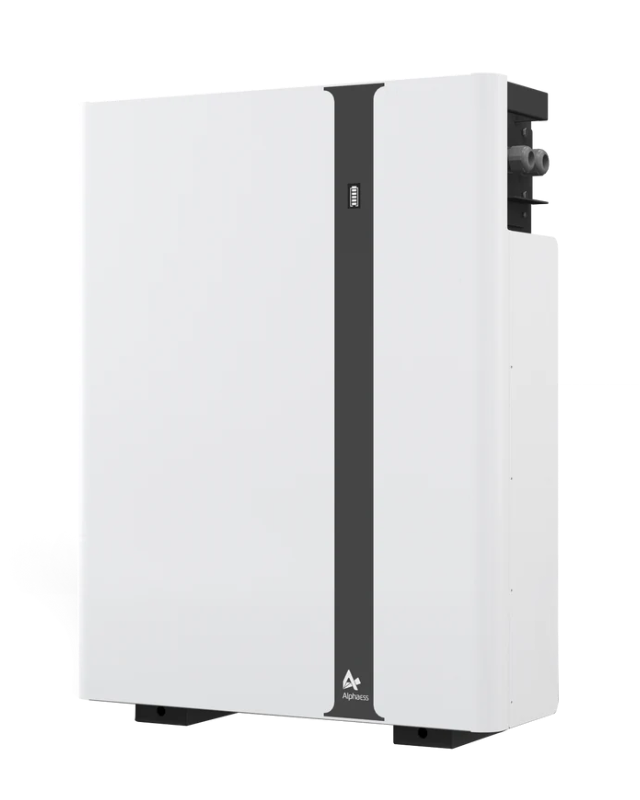

13.3 kWh Battery Technical Specification
-
Module ModelSMILE-BAT-13.3P
-
Nominal Capacity13.34 kWh
-
Modules Connection1 - 6 in parallel
-
Max. Charging / Discharging Current100 A / 100 A
-
Operating Temperature Range-10 ~ 50℃
-
IP ProtectionIP65
-
Dimensions (W x H x D)610 x 816 x 236 mm
-
Weight121 kg
x
15 kWh Battery Technical Specification
-
Module ModelSMILE-BAT-15P
-
Nominal Capacity15.07 kWh
-
Modules Connection1 - 5 in parallel
-
Max.Charging / Discharging Current100 A / 100 A
-
Operating Temperature Range-10 ~ 50℃
-
IP ProtectionIP65
-
Dimensions (W x H x D)637 x 810 x 235 mm
-
Weight108.5 kg
x
Product Documents
Click any of the categories to find the documents in our online service center.
x
x
Convenient Installation & Self Check
