Rebate-Ready Capacity
13.99 kWh modules perfectly aligned with Australia’s 14 & 28 kWh rebate tiers.
All-in-One Design
Integrated inverter and battery design for a cleaner look and faster installation.
VPP Integration Ready
Supports smarter energy participation and future VPP opportunities.
Up to 200% PV Input
Maximise solar generation with higher PV oversizing capability.
x
Product Introduction
Nominal Output Power: 5 kW
Max. PV Input Current: 16 A (per MPPT)
Max. PV Input Power: 10 kWp
Capacity Range:
5 - 30 kWh (100% DoD)
13.99 kWh - 27.98 kWh (100% DoD)
Backup: UPS
Phase: Single Phase
Inverter Type: Hybrid Inverter
x
Compatible Battery Model
x
Battery Technical Specification
-
Module ModelSMILE-M-BAT-5P
-
Nominal Capacity5 kWh (100% DoD)
-
Modules Connection1 - 6 in parallel
-
Max.Charging / Discharging Current100 A / 100 A
-
Operating Temperature Range0 ~ 50℃ (Charge); -10 ~ 50℃ (Discharge)
-
IP ProtectionIP65
-
Dimensions (W x D x H)620 x 240 x 390 mm
-
Weight49.5 kg
-
Short-circuit Current7.5 kA
-
Max DC VoltsSeen on the battery label
x
Battery Technical Specification
-
Module ModelSMILE-M-BAT-13.9P
-
Nominal Capacity13.99 kWh (100% DoD)
-
Modules Connection1 - 2 in parallel
-
Max.Charging / Discharging Current105 A / 105 A
-
Operating Temperature Range-10 ~ 50℃
-
IP ProtectionIP65
-
Dimensions (W x H x D)620 x 240 x 710 mm
-
Weight115 kg
-
Short-circuit Current7.5 kA
-
Max DC VoltsSeen on the battery label
x
Convenient Installation & Self Check
The SMILE-M5 reduces manual wiring, while AlphaESS's Partner App makes commissioning faster with debugging and self-checks—less work, more efficiency.
AlphaESS is always your partner in every endeavour, no matter the situation, anywhere, anytime.
x

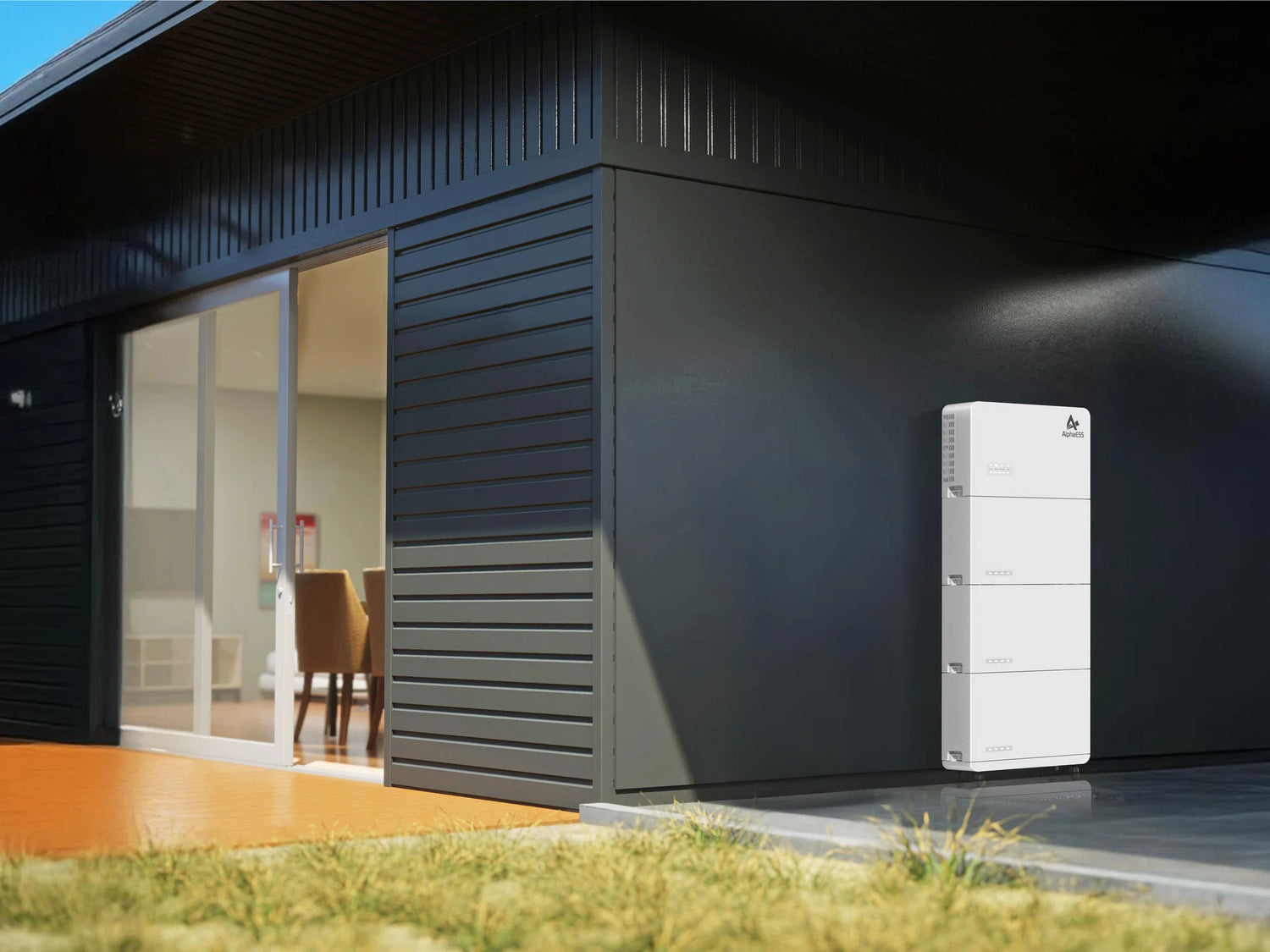

AlphaESS SMILE-M5-S with 5 kWh Stackable Battery

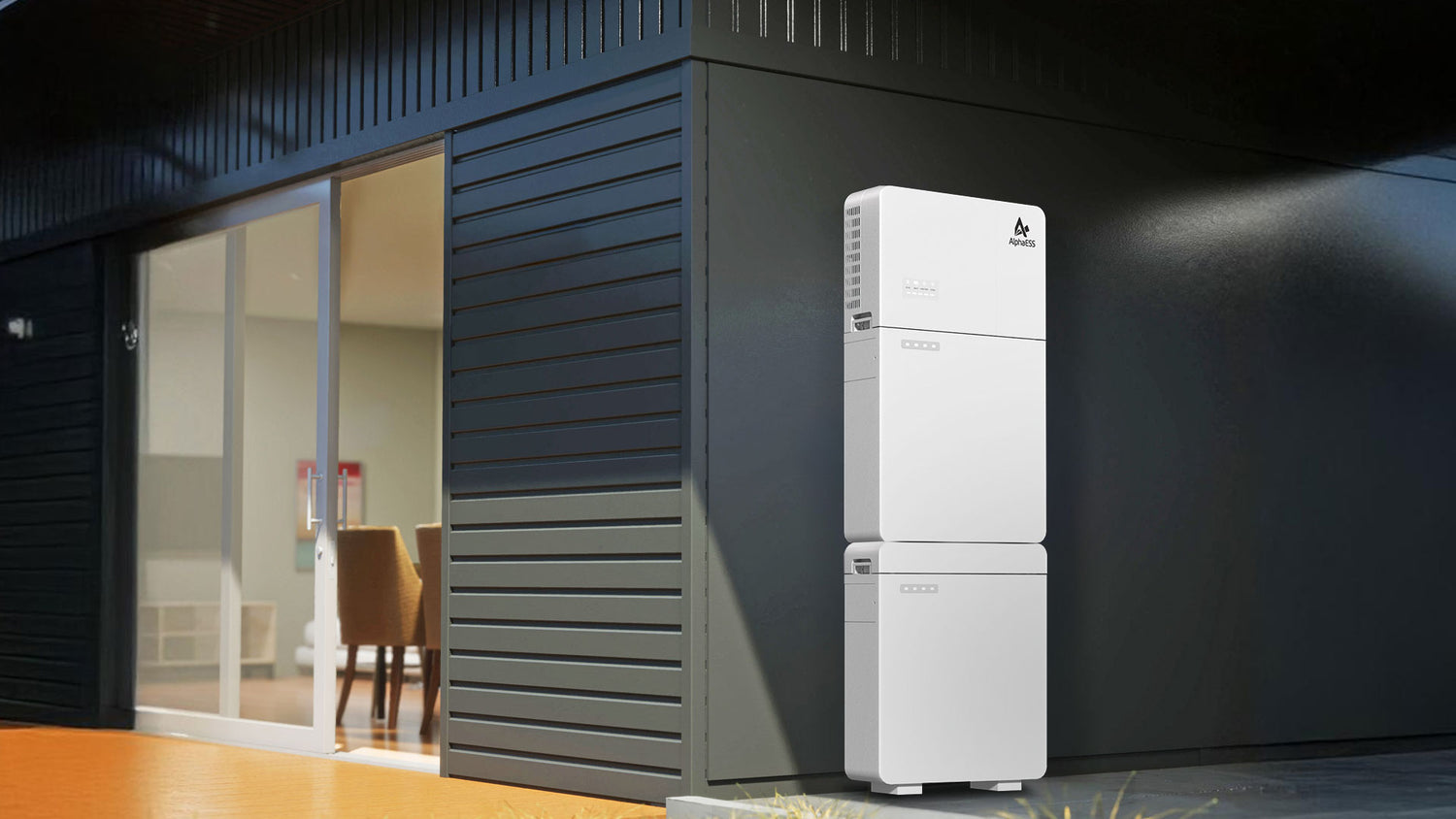

AlphaESS SMILE-M5-S with 13.99 kWh Stackable Battery
x
Product Documents
Click any of the categories to find the documents in our online service center.
