SMILE-G3-S5

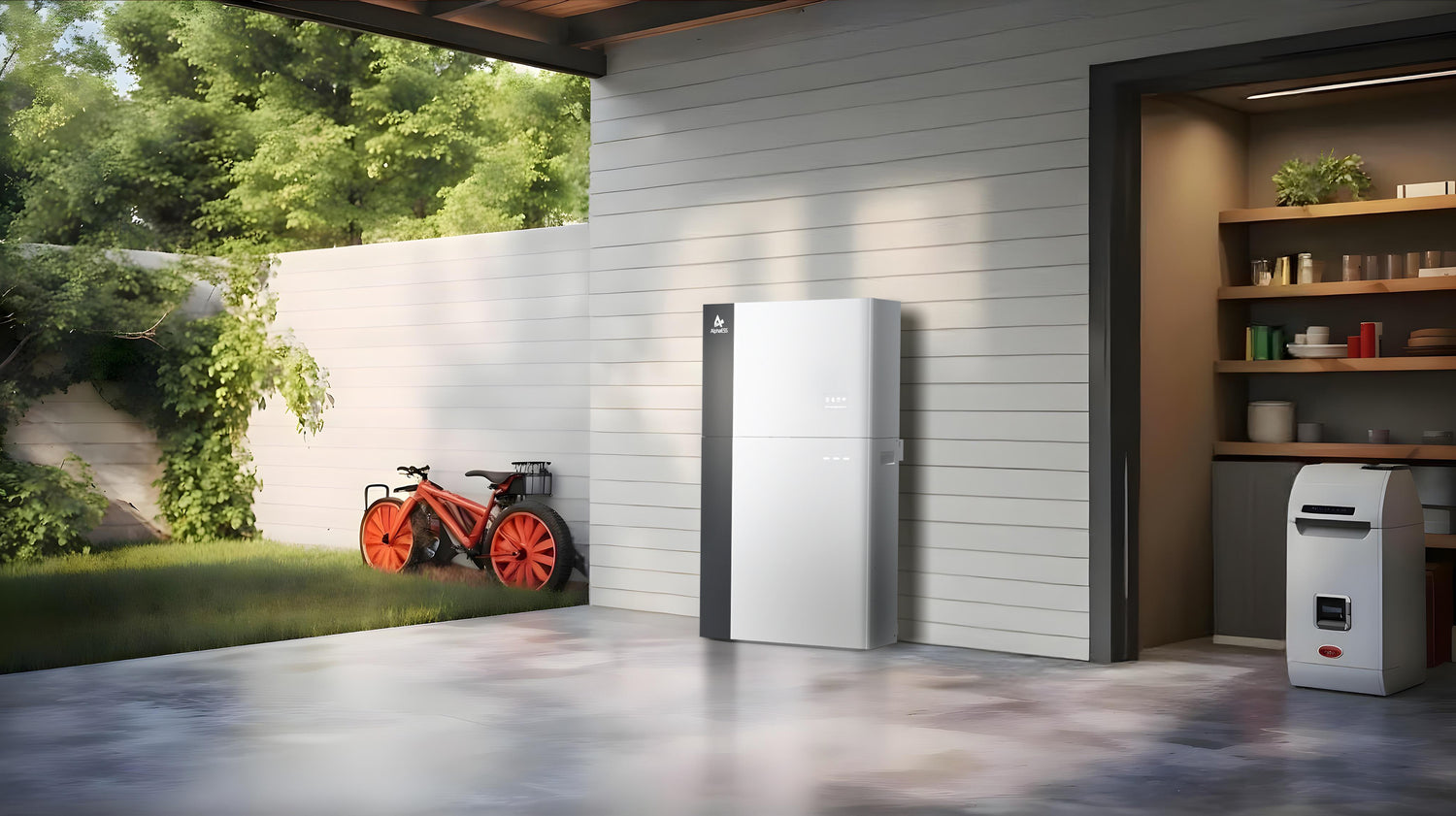

This home solar storage system comes with a 5kW hybrid single-phase inverter and 10.1kWh battery modules. It is quite suitable for scenarios where there is no solar system installed yet, or consumers want to install more solar panels and a battery storage systems on the existing solar system. It can capture more precise data to meet stricter VPP requirements.

Energy Independence
Stores excess solar energy to power your home at night or during peak-rate hours and provides backup power in the event of a grid interruption
Boost Profits with STC Subsidy
By supporting 16A per MPPT, the mainstream solar panel models on Australian market could be utilized with SMILE-M5 series.
Very Fast FCAS
With very fast FCAS capability, customers are enabled to participate in more grid activities.
All-in-One System
Aesthetically pleasing and practical all-in-one design
Built-in Changeover Switch Functionality
Ensures backup circuit is working when the inverter fails
SMILE-G3-S5

This home solar storage system comes with a 5kW hybrid single-phase inverter and 10.1kWh battery modules. It is quite suitable for scenarios where there is no solar system installed yet, or consumers want to install more solar panels and a battery storage systems on the existing solar system. It can capture more precise data to meet stricter VPP requirements.

Energy Independence
Stores excess solar energy to power your home at night or during peak-rate hours and provides backup power in the event of a grid interruption
Boost Profits with STC Subsidy
Supports max. 10kW PV input power
Very Fast FCAS
With very fast FCAS capability, customers are enabled to participate in more grid activities.
All-in-One System
Aesthetically pleasing and practical all-in-one design
Built-in Changeover Switch Functionality
Ensures backup circuit is working when the inverter fails
Product Introduction

Phase:Single Phase
Nominal Output Power:5 kW
Max. PV Input Current:15 A / 15A
Max. PV Input Power:10 kWp
Capacity Range:10.1 - 60.5 kWh (95% DoD)
Backup:UPS

Battery Compatible Model
Battery Technical Specification

SMILE-G3-BAT-10.1P

SMILE-G3-BAT-10.1P

Module Model
SMILE-G3-BAT-10.1P
Energy Capacity
10.1 kWh (95% DoD)
Modules Connection
1 - 6 in Parallel
Max. Charging / Discharging Current
60 A / 60A
Operating Temperature Range
0 ~ 50℃(Charge); -10 ~ 50℃(Discharge)
IP Protection
IP65（Outdoor）
Dimensions (W x D x H)
610 x 212 x 793 mm
Weight
90 kg
Product Documents

Click any of the categories to find the documents in our online service center.

System Datasheet Battery Datasheet Monitoring App Users Manual
Installation Manual Saftey Datasheet
Warranty Brochure
Inverter Capatibility Statement
